Grille - Installation







INSTALLATION

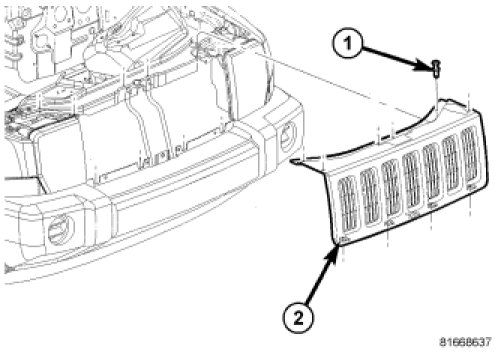

1. Tip grill and latch bottom of grill (2) to front fascia.
2. Install the 6 upper mounting push pins (1).
