Removal

REMOVAL

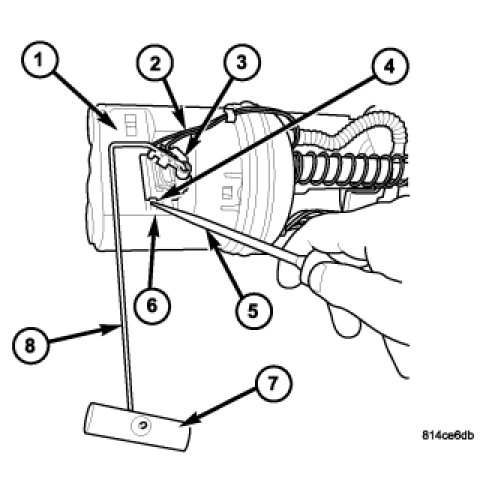

The fuel level sending unit (fuel level sensor) (3) and float assembly (7) and (8) is located on the side of the fuel pump module.

1. Remove fuel pump module from fuel tank. Fuel Pump Module - Removal.
2. Disconnect electrical connector from fuel pump module. Record pin location first. Separate necessary sending unit wiring from connector using terminal pick/removal tool.
3. To remove sending unit from pump module, use a small pick (5) or screwdriver. Lift on plastic locking tab (4) while sliding sending unit (3) down the mounting tracks (6).
