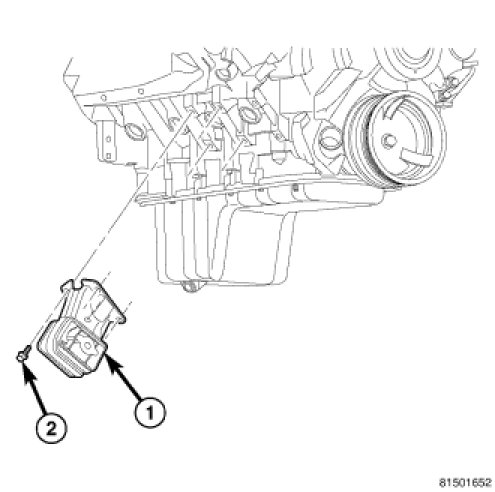

Front Engine Mount
REMOVAL
1. Disconnect negative battery cable.
2. Raise vehicle.
3. Remove engine mount thru bolts.
4. Raise engine using suitable jack.
5. Remove engine mount bolts (2).
6. Remove mount (1) from engine.
REMOVAL
1. Disconnect negative battery cable.
2. Raise vehicle.
3. Remove engine mount thru bolts.
4. Raise engine using suitable jack.
5. Remove engine mount bolts (2).
6. Remove mount (1) from engine.
