Rear Engine Mount







INSTALLATION

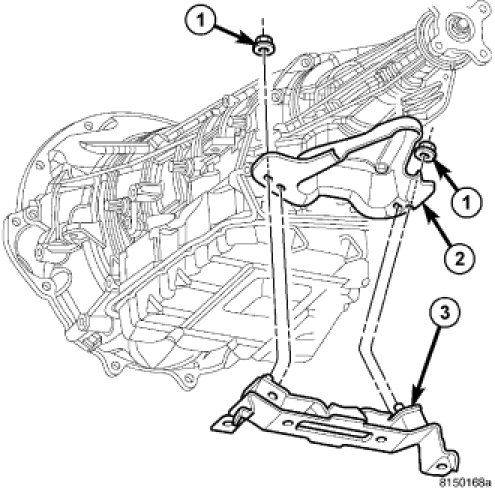

4X2





1. Install the transmission mount bracket (2), if removed.
2. Position the transmission mount (3) on the transmission mount bracket (2). Install the fasteners (1) that attach the transmission mount to the bracket.
3. Tighten the bolts to 30 Nm (22 ft. lbs.).
4. Install the crossmember.

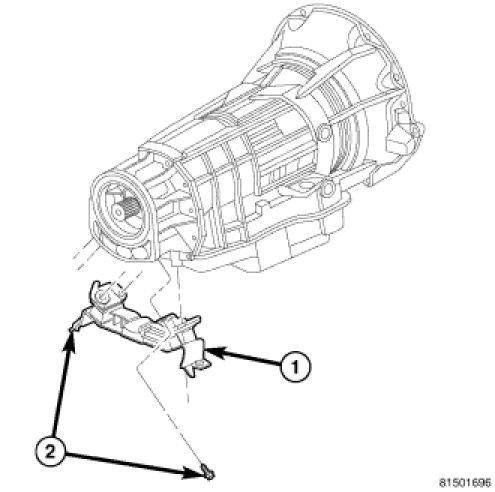

4X4





1. Position the transmission mount (1) on the transmission. Install the bolts (2) that attach the transmission mount to the transmission.
2. Tighten the bolts to 30 Nm (22 ft. lbs.).
3. Install the crossmember.
