Accessory Drive Belt Tensioner - Installation







5.7L

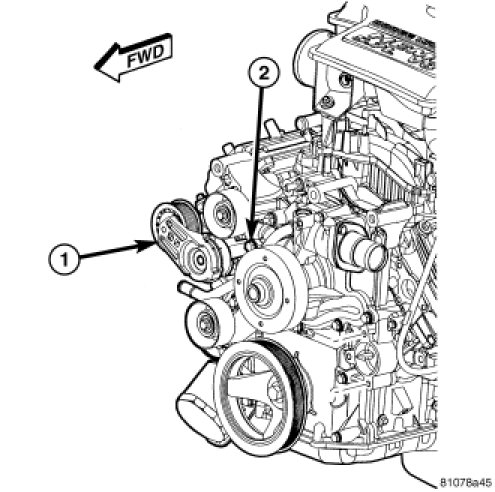

1. Align locator tang on tensioner with slot in front cover.
2. Install tensioner and mounting bolt to front cover. Tighten bolt to 41 Nm (30 ft. lbs.).
3. Install accessory drive belt Accessory Drive Belt - Installation
