Sensor-Park Assist-No. 10

Component ID: 516
Component : SENSOR-PARK ASSIST-NO. 10

Connector:
Name : SENSOR-PARK ASSIST-NO. 10
Color : BLACK
# of pins : 3
Qualifier : (REAR PARK ASSIST)




Pin Circuit Description
1 D704 20WT/DB PARK ASSIST SENSOR NO. 10 SIGNAL
2 X750 20GY/LB GROUND
3 X700 20GY/OR PARK ASSIST SENSOR SUPPLY

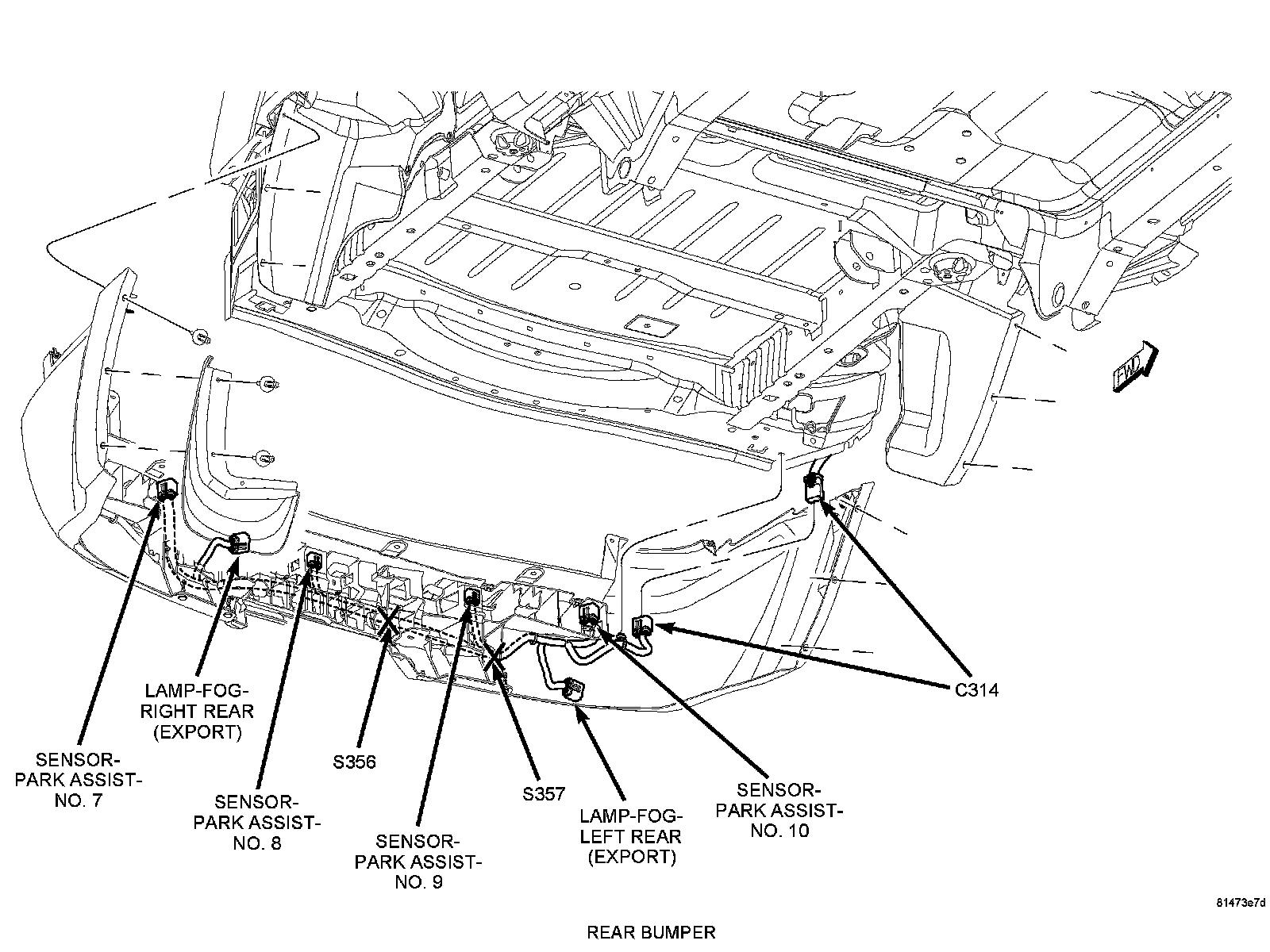

Component Location - 76
