Accessory Drive Belt Tensioner - Installation







3.7L

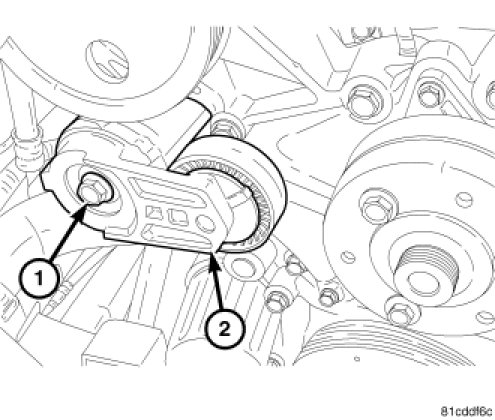

1. An indexing slot is located on back of tensioner (2). Align this slot to the head of the bolt on the front cover. Install the mounting bolt (1). Tighten bolt to 41 Nm (30 ft. lbs.).
2. Install drive belt Accessory Drive Belt - Installation.
