Seat - Rear

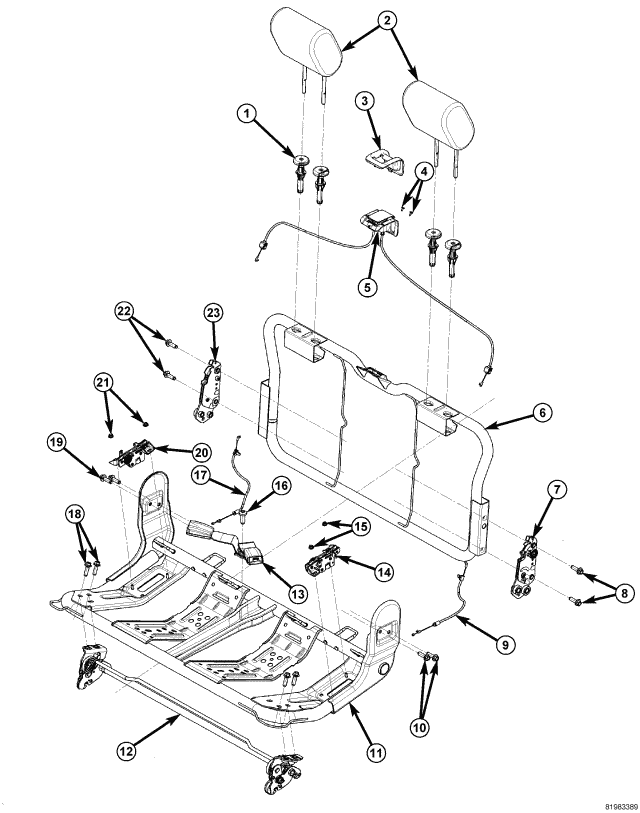

Fig 1: Identifying Rear Seat Components (2 Door)

Courtesy of CHRYSLER LLC

1 - HEADREST SLEEVES

2 - HEADRESTS

3 - RELEASE HANDLE BEZEL

4 - RELEASE HANDLE SCREWS

5 - RELEASE HANDLE

6 - SEAT BACK FRAME

7 - SEAT BACK LATCH

8 - SEAT BACK LATCH BOLTS 45 N.m (33 ft. lbs.)

9 - CABLE - BACK LATCH TO REAR FLOOR LATCH

10 - BACK FRAME TO CUSHION ATTACHMENT BOLTS 50 N.m (37 ft. lbs.)

11 - SEAT CUSHION FRAME

12 - FRONT LATCH

13 - CENTER BELT BUCKLES

14 - REAR LATCH - LEFT HAND

15 - REAR LATCH NUTS 10 N.m (90 in. lbs.)

16 - CENTER BELT BUCKLE BOLT 55 N.m (40.5 ft. lbs.)

17 - CABLE - BACK LATCH TO REAR FLOOR LATCH

18 - FRONT LATCH CUSHION FRAME BOLTS 45 N.m (33 ft. lbs.)

19 - BACK FRAME TO CUSHION ATTACHMENT BOLTS 50 N.m (37 ft. lbs.)

20 - REAR LATCH - RIGHT HAND

21 - REAR LATCH NUTS 10 N.m (90 in. lbs.)

22 - SEAT BACK LATCH BOLTS 45 N.m (33 ft. lbs.)

23 - SEAT BACK LATCH

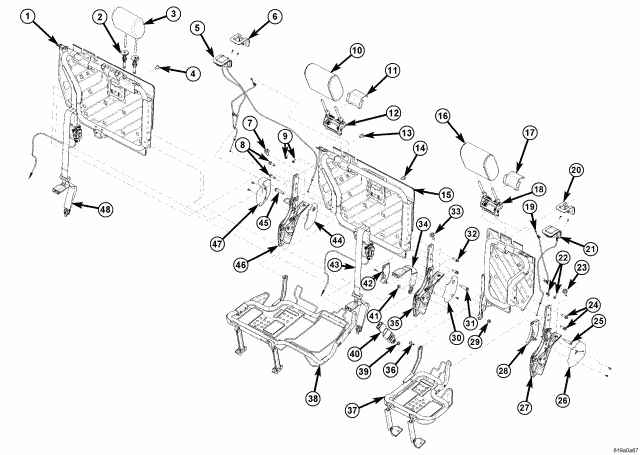

Fig 2: Identifying Rear Seat Components (4 Door)

Courtesy of CHRYSLER LLC

1 - 60% SEAT BACK FRAME - EXPORT	25 - SEAT CUSHION PIVOT BOLT 25 N.m (18.5 ft. lbs.)
2 - EXPORT HEADREST SLEEVES	26 - OUTER LATCH COVER
3 - HEADREST - EXPORT	27 - OUTBOARD LATCH
4 - RETRACTOR SCREW 55 N.m (40.5 ft. lbs.)	28 - INNER LATCH COVER
5 - RELEASE HANDLE	29 - 40% INNER SEAT BACK PIVOT NUT 25 N.m (18.5 ft. lbs.)
6 - RELEASE HANDLE BEZEL	30 - INNER LATCH COVER
7 - OUTBOARD LATCH FLOOR BOLTS 25 N.m (18.5 ft. lbs.)	31 - SEAT CUSHION PIVOT BOLT 25 N.m (18.5 ft. lbs.)
8 - LATCH TO BACK FRAME BOLTS 45 N.m (33 ft. lbs.)	32 - LATCH TO BACK FRAME BOLTS 45 N.m (33 ft. lbs.)
9 - HEADREST BOLTS 8 N.m (71 in. lbs.)	33 - INNER LATCH FLOOR BOLTS 25 N.m (18.5 ft. lbs.)
10 - HEADREST	34 - 60% INBOARD BUCKLE
11 - HEADREST BEZEL	35 - INBOARD LATCH
12 - HEADREST BRACKET AND HINGE	36 - SEAT CUSHION PIVOT BOLT 25 N.m (18.5 ft. lbs.)
13 - RETRACTOR SCREW 55 N.m (40.5 ft. lbs.)	37 - 40% SEAT CUSHION FRAME
14 - RETRACTOR SCREW 55 N.m (40.5 ft. lbs.)	38 - 60% SEAT CUSHION FRAME
15 - 60% SEAT BACK FRAME	39 - BELT BUCKLE NUT 45 N.m (33 ft. lbs.)
16 - HEADREST	40 - 40% INBOARD BUCKLE
17 - HEADREST BEZEL	41 - BELT BUCKLE NUT 45 N.m (33 ft. lbs.)
18 - HEADREST BRACKET AND HINGE	42 - INNER LATCH COVER
19 - HEADREST RELEASE CABLE	43 - SEAT BELT RETRACTOR
20 - RELEASE HANDLE BEZEL	44 - INNER LATCH COVER
