Hard Top

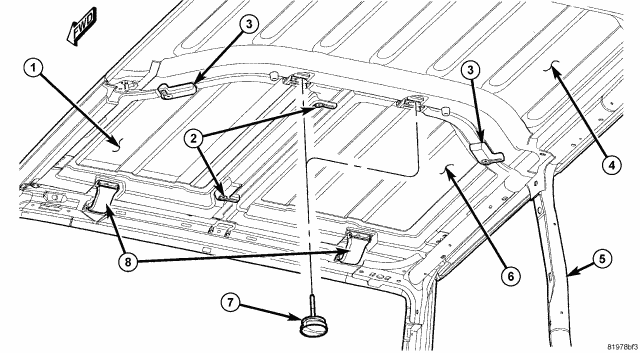

Fig 1: Identifying Hard Top Thumb Screws

Courtesy of CHRYSLER LLC

From inside the vehicle, release the center clamps (2).
Release the rear clamps (3).
Remove the rear thumb bolts (7).
Release the front top clamps (8).

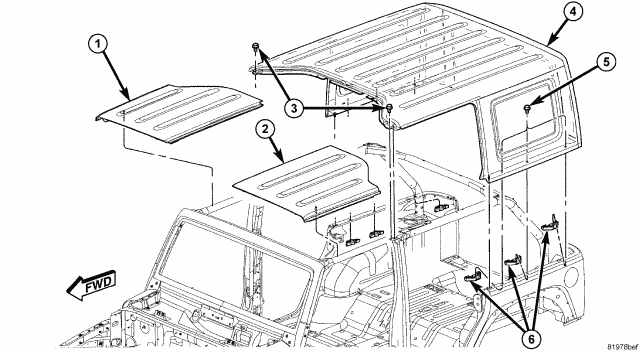

Fig 2: Identifying Hard Top Components
Courtesy of CHRYSLER LLC
Remove the modular tops (1) and (2).
On four door models, remove the two front bolts (3).
Remove the six side bolts (5) and remove the main hard top (4).
