Steering Column Opening Cover

Fig 1: View Of Lower Steering Column Opening

Courtesy of CHRYSLER LLC

Using a trim stick C-4755 or equivalent, release the tabs and separate the lower steering column opening cover (1).

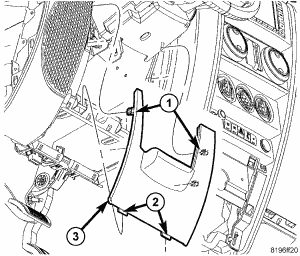

Fig 2: Removing/Installing Steering Column Opening Cover
Courtesy of CHRYSLER LLC
Using a trim stick C-4755 or equivalent, release the upper clips (1) and rotate the steering column opening cover (3) down and remove from lower tabs (2).

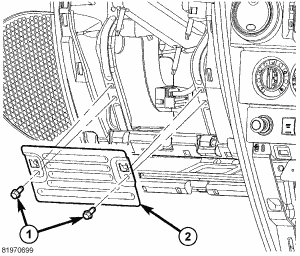

Fig 3: Removing/Installing Reinforcement Plate
Courtesy of CHRYSLER LLC
Remove the bolts (1) and remove the reinforcement plate (2).
