Glove Box

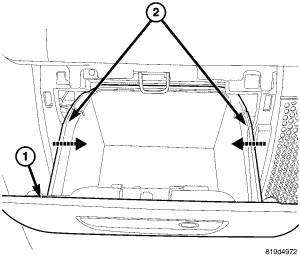

Fig 1: Identifying Glove Box
GC0064743Courtesy of CHRYSLER LLC
  1. Open the glove box (1) and squeeze the stop tabs (2) inward.

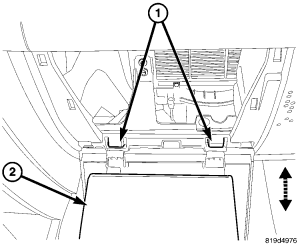

    Fig 2: Removing/Installing Glove Box
    GC0064744Courtesy of CHRYSLER LLC
  2. Lower the glove box (2) and release the hinges (1) and remove the glove box.
