Operation
OPERATION

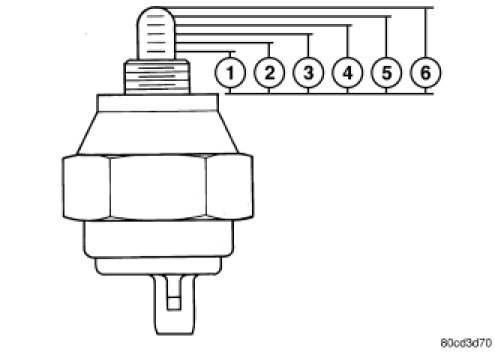

Position Sensor Linear Movement

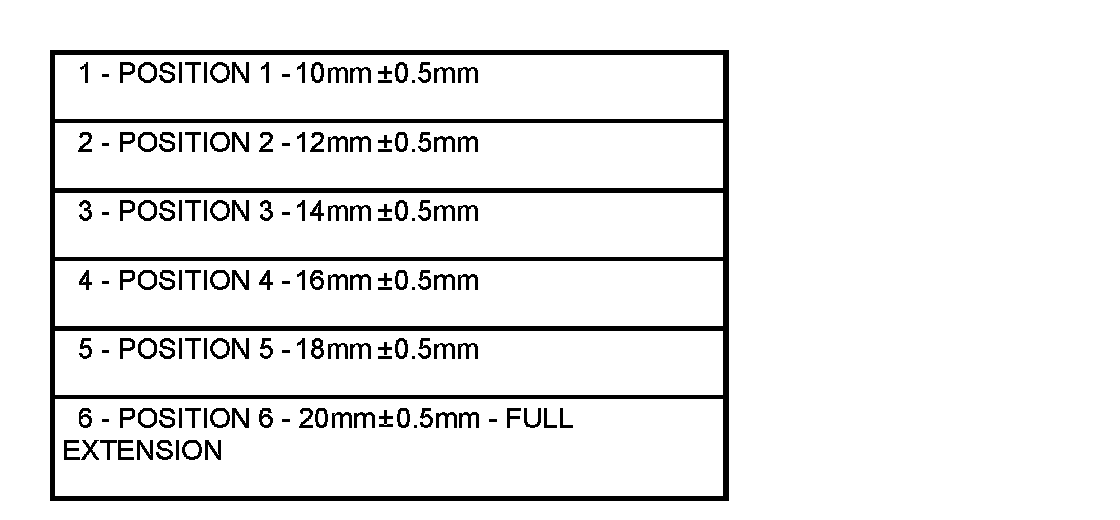

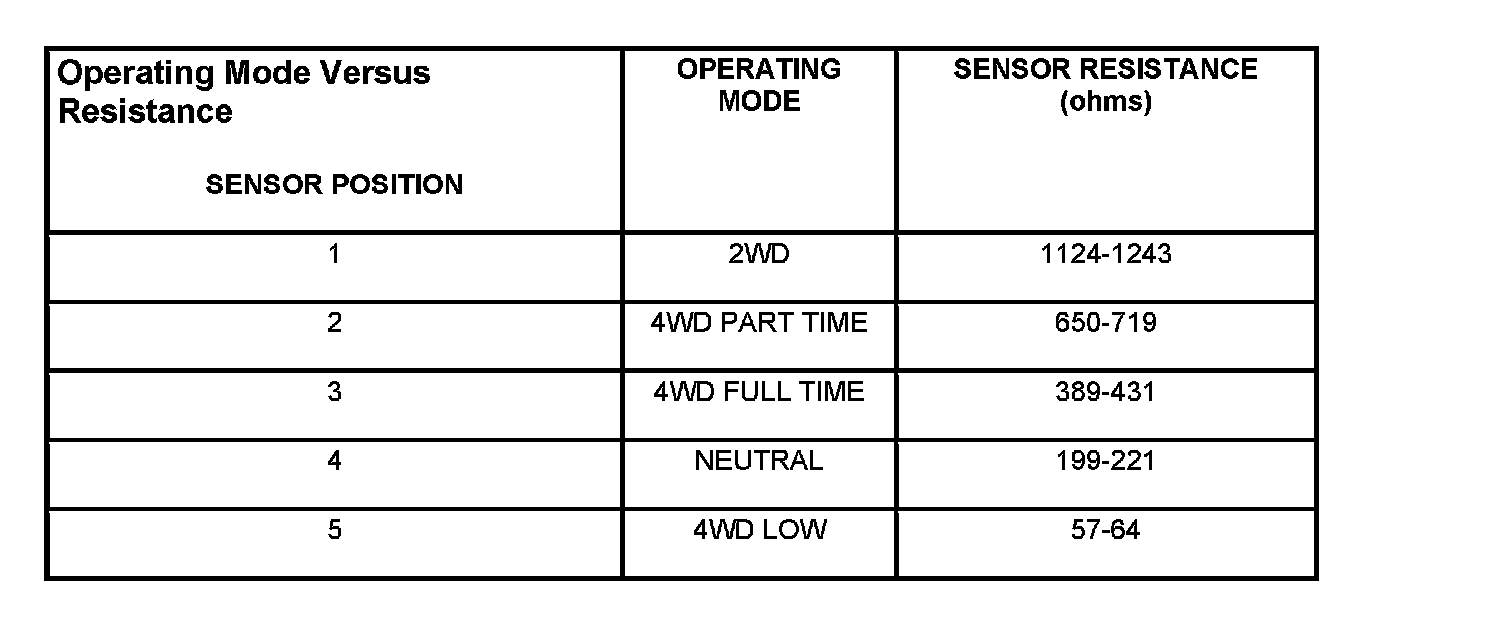

During normal vehicle operation, the Powertrain Control Module (PCM) monitors the transfer case position sensor return voltage to determine the operating mode of the transfer case. Refer to the Operating Mode Versus Resistance table for the correct resistance for each position.
Operating Mode Resistance:
