Removal - 3.8L

REMOVAL - 3.8L

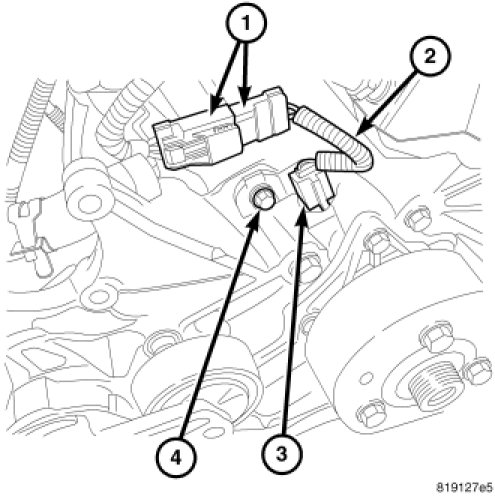

The CMP (Camshaft Position Sensor) (3) is bolted to front of engine. The CMP uses a pigtail wiring harness (2). This connects the sensor to the engine harness.

1. Disconnect negative battery cable.

2. Disconnect electrical connectors (1).

3. Remove sensor mounting bolt (4).

4. An O-ring is used to seal the sensor to engine. Remove sensor (3) from engine by pulling while rotating.
