Air Temperature Sensor ( Ambient / Intake ): Locations

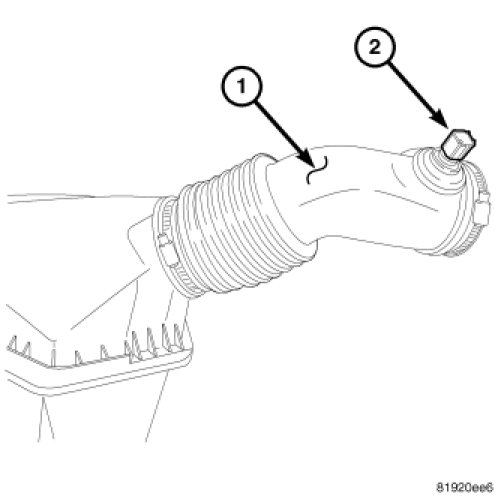

The intake manifold air temperature (IAT) sensor (2) is installed into the rubber air intake tube (1) near the throttle body.
