Removal

REMOVAL




1. Remove the cylinder head(s).

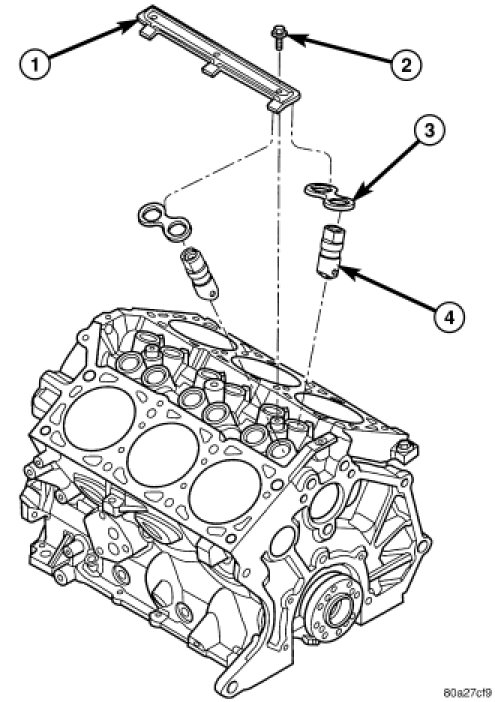

2. Remove the yoke retainer and aligning yokes.
3. Remove the hydraulic lifters. If necessary use Special Tool C-4129, or equivalent to remove lifters from bores. If lifters are to be reused, identify each lifter to ensure installation in original location.
