Camshaft - Removal

REMOVAL




1. Remove the radiator and cooling fans from the vehicle.
2. Remove the cylinder heads.
3. Remove the timing chain and camshaft sprocket.

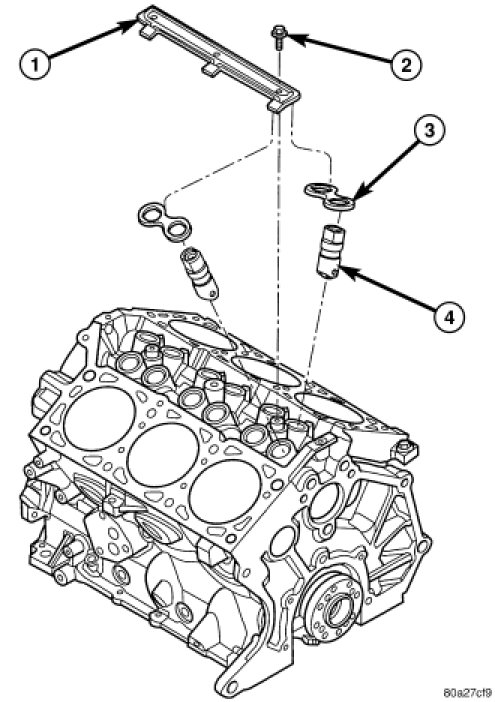

4. Remove the yoke retainer (1).
5. Remove the hydraulic lifters (4). Identify each tappet for reinstallation in original location.

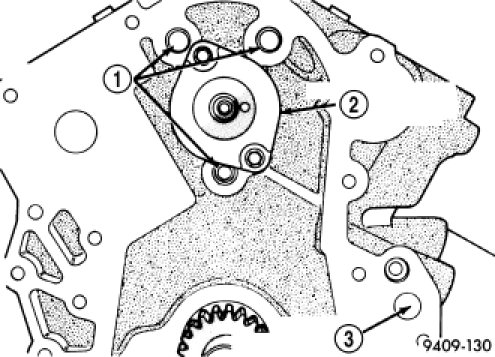

6. Remove camshaft thrust plate (1).

NOTE: Slowly remove the camshaft from the engine taking precautions not to damage the camshaft bearings.

7. Install a long bolt into front of camshaft to facilitate removal of the camshaft.
8. Carefully remove the camshaft,

NOTE: The camshaft bearings are serviced with the engine block.
