Camshaft - Installation

INSTALLATION




1. Lubricate camshaft lobes and camshaft bearing journals with engine oil.

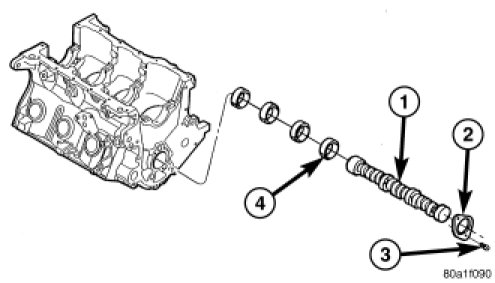

2. Install a long bolt into the camshaft to assist in the installation of the camshaft.
3. Carefully install the camshaft in engine block.
4. Install camshaft thrust plate and bolts. Tighten to 12 Nm (105 in. lbs.) torque.
5. Measure camshaft end play. If not within specifications, replace thrust plate.
6. Install the timing chain and sprockets.

NOTE: When camshaft is replaced, all of the hydraulic lifters must be replaced.

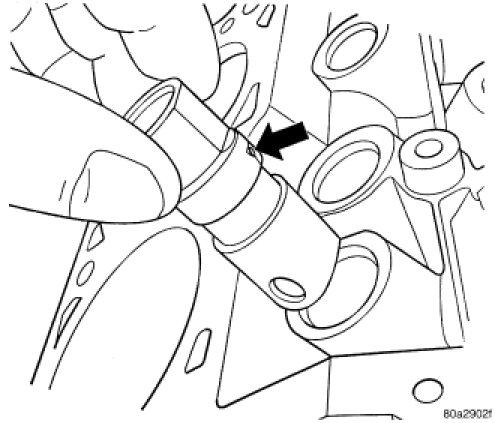

7. Install the hydraulic lifters with lubrication hole in the upward position.
8. Install the timing chain cover.
9. Install the cylinder heads.
10. Install the cylinder head covers.
11. Install the lower and upper intake manifolds.
12. Install the radiator and cooling fan.
