Sensor-Engine Coolant Temperature: Removal: Removal-3.7L

WARNING: This page is about a different variant/trim than selected.

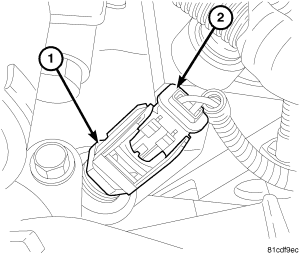

Fig 1: Engine Coolant Temp Sensor (ETC) - 3.8L

Courtesy of CHRYSLER LLC

1 - ENGINE COOLANT TEMPERATURE SENSOR (ETC)

2 - ELECTRICAL CONNECTOR

WARNING: Hot, pressurized coolant can cause injury by scalding. Cooling system must be partially drained before removing the coolant temperature sensor.

Remove air cleaner assembly. Refer to REMOVAL .
Partially drain the cooling system.
Disconnect the electrical connector (2) from the engine coolant sensor (1).
Remove the sensor from the intake manifold.
