Water Pump-Installation-2.8L Diesel Engine
WARNING: This page is about a different variant/trim than selected.

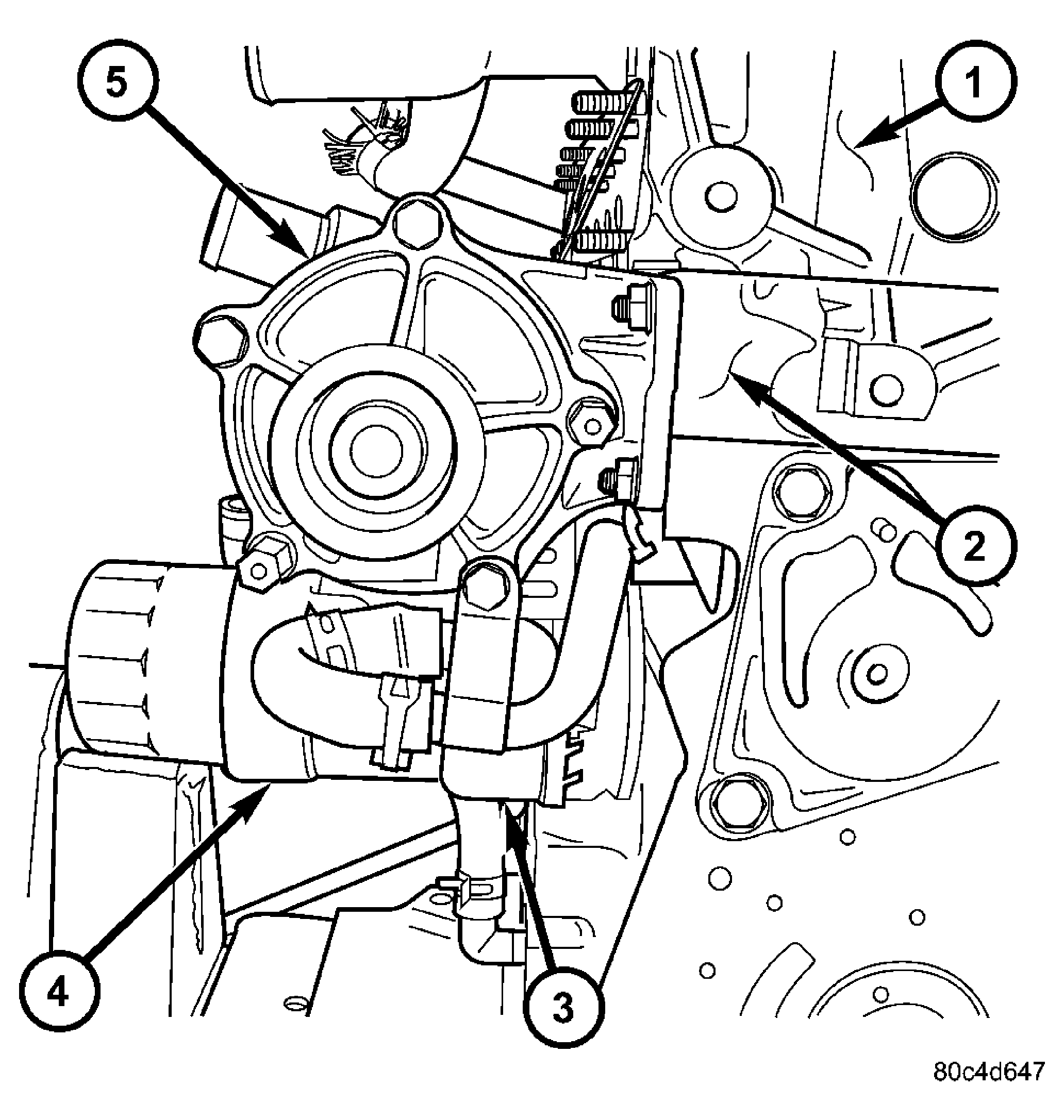

| 1 - CYLINDER HEAD |
| 2 - ENGINE BLOCK |
| 3 - OIL COOLER |
| 4 - OIL FILTER HOUSING |
| 5 - WATER PUMP |
- Clean mating surfaces of water pump housing and engine block as necessary.
- Place new O-ring in groove in water pump housing. Install water pump and retaining bolts. Torque bolts to 24 N.m (212 in. lbs.).
- Install both inner and outer timing belt covers. Refer to INSTALLATION ).
- Refill cooling system. See STANDARD PROCEDURE .
- Connect negative battery cable.
