Water Pump-Description-2.8L Diesel
WARNING: This page is about a different variant/trim than selected.

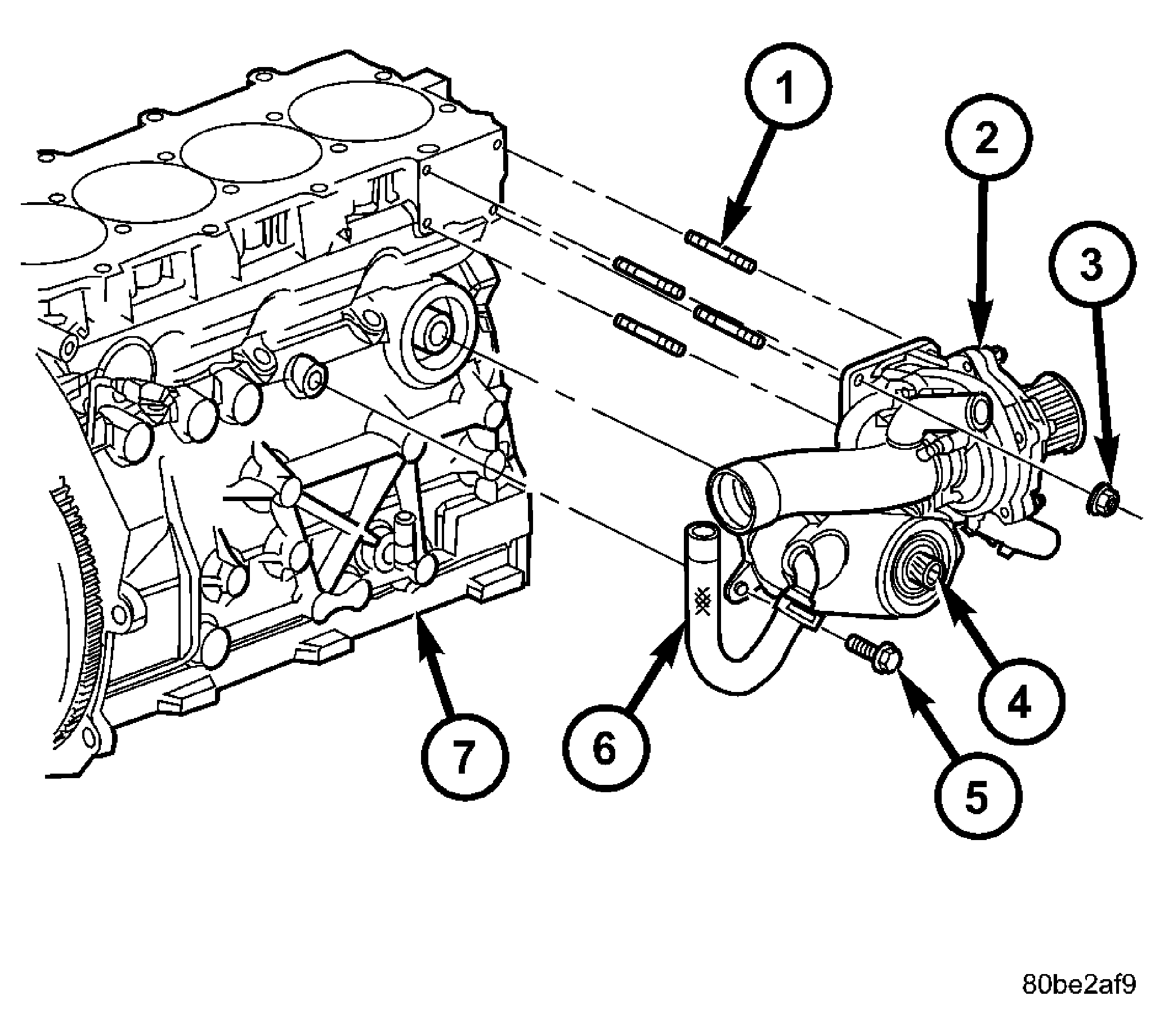

| 1 - WATER PUMP HOUSING STUDS |
| 2 - WATER PUMP |
| 3 - RETAINING NUTS |
| 4 - OIL COOLER RETAINING STUD |
| 5 - OIL COOLER TO ENGINE BLOCK RETAINING BOLT |
| 6 - OIL COOLER COOLANT HOSE |
| 7 - ENGINE BLOCK |
The water pump on the 2.8L diesel has a die cast aluminum housing. It bolts to an aluminum housing which attaches to the engine block.
