EGR Cooler-Installation

WARNING: This page is about a different variant/trim than selected.
Fig 1: EGR Cooler Bolt Location
GC0063862Courtesy of CHRYSLER LLC
  1. Position new gasket and EGR Cooler.
  2. Install five mounting bolts. Tighten bolts to 10 N.m (89 in lbs.).

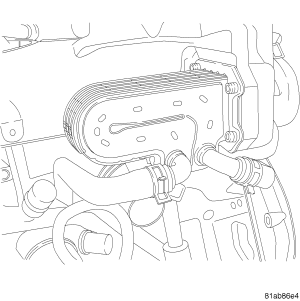

    Fig 2: EGR Cooler
    GC0063861Courtesy of CHRYSLER LLC
  3. Install cooler hoses.
  4. Fill cooling system. See STANDARD PROCEDURE .
