Coolant Recovery Container-Installation-Gas Engine

WARNING: This page is about a different variant/trim than selected.

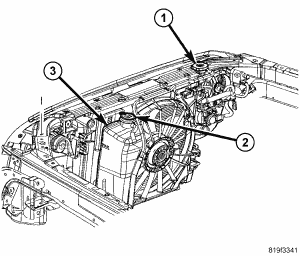

Fig 1: Coolant Recovery Bottle - Gas
GC0063853Courtesy of CHRYSLER LLC
1 - Item_1
2 - Item _2
  1. Position the tabs on the overflow bottle into the slots on the fan shroud.
  2. Reconnect the overflow hose onto the radiator filler neck.
  3. Fill coolant recovery container. See STANDARD PROCEDURE .
