Idler Pulley-Removal-2.8L Diesel

WARNING: This page is about a different variant/trim than selected.

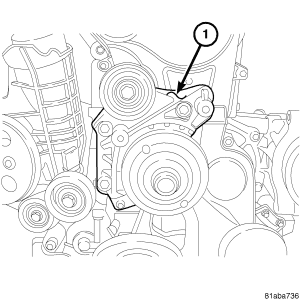

Fig 1: Idler Pulley
GC0056735Courtesy of CHRYSLER LLC
CAUTION: The retaining bolts on the idler pulleys are left hand thread.
  1. Disconnect negative battery cable.
  2. Remove accessory drive belt. See REMOVAL .
  3. Remove idler pulley retaining bolts and pulley.
