Idler Pulley-Installation-3.8L

WARNING: This page is about a different variant/trim than selected.

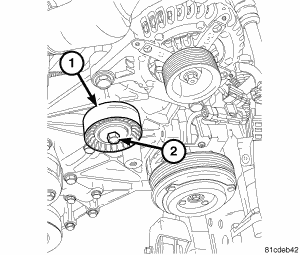

Fig 1: Idler Pulley - 3.8L
GC0063852Courtesy of CHRYSLER LLC
1 - IDLER PULLEY
2 - IDLER PULLEY BOLT
  1. Install idler pulley (1) and pulley bolt (2). Tighten bolt to 61 N.m (45 ft. lbs.) torque.
  2. install accessory drive belt. See INSTALLATION .
