Brake Transmission Shift Interlock

WARNING: This page is about a different variant/trim than selected.
  1. Remove lower steering column cover. Refer to REMOVAL .
  2. Remove lower steering column shroud.
  3. Remove tie strap near the solenoid retaining the brake transmission interlock cable to the steering column.
  4. Disengage wire connector from solenoid.
  5. With the ignition removed or in the unlocked position, disengage lock tab holding cable end to steering column. See Fig 1.
  6. Pull cable end from steering column.
  7. Remove the floor console and related trim. Refer to REMOVAL .
  8. Disconnect the cable from the bellcrank. See Fig 2.
    Fig 1: Removing/Installing Park Interlock Cable
    GC0025398Courtesy of CHRYSLER LLC
    1 - IGNITION LOCK
    2 - LOCK TAB
    3 - CABLE END

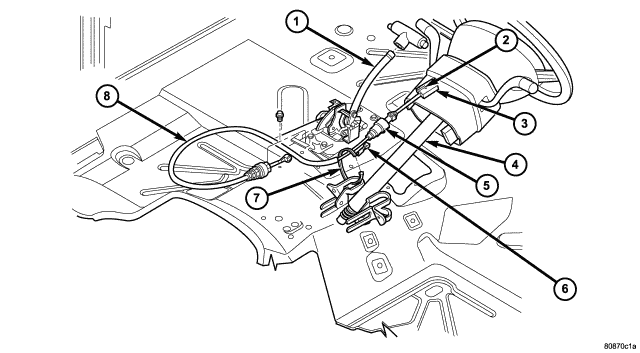

    Fig 2: Ignition Interlock Cable Routing
    GC0029736Courtesy of CHRYSLER LLC
    1 - SHIFT MECHANISM 5 - SOLENOID
    2 - LOCK-TAB 6 - WIRE CONNECTOR
    3 - IGNITION LOCK INTERLOCK 7 - TIE STRAP
    4 - STEERING COLUMN 8 - PARK/BRAKE INTERLOCK CABLE
  9. Disconnect and remove the cable from the shift bracket.
