Body - Interior & Exterior: Tailgate: Handle: Removal: Handle

Fig 1: Removing/Installing Inner Latch Trim

Courtesy of CHRYSLER LLC

1. Using a trim stick C-4755 or equivalent, remove the inner latch trim (2).

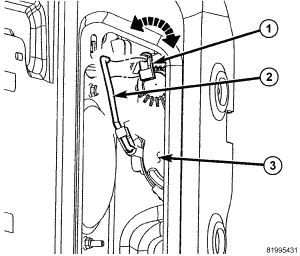

   Fig 2: Removing/Installing Latch Rod

   Courtesy of CHRYSLER LLC
2. Disconnect the latch rod (2) from the handle (1).

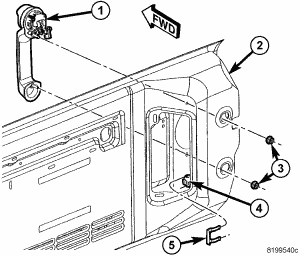

   Fig 3: Removing/Installing Handle

   Courtesy of CHRYSLER LLC
3. Remove the nuts (3) and remove the handle (1).
