Cluster Bezel

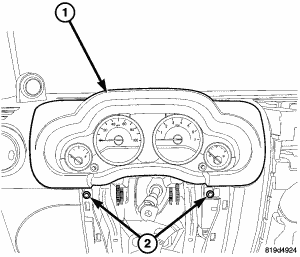

Fig 1: Removing/Installing Cluster Bezel
GC0064742Courtesy of CHRYSLER LLC
  1. Remove the steering column opening cover. See REMOVAL .
  2. Remove the screws (2), release the retaining clips and remove the bezel (1).
