Valves And Valve Springs

Fig 1: Identifying Spring Compressor & Adapter
GC0064351Courtesy of CHRYSLER LLC
1 - SPECIAL TOOL C-3422-D SPRING COMPRESSOR
2 - SPECIAL TOOL 8464 ADAPTER
  1. With cylinder head removed, compress valve springs using Valve Spring Compressor Tool C-3422-D with adapter 8464. See Fig 1.

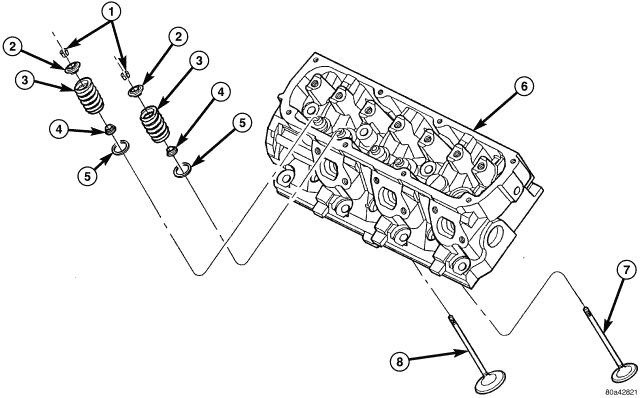

    Fig 2: Exploded View Of Spring Seats & Cylinder Head
    GC0064352Courtesy of CHRYSLER LLC
    1 - VALVE LOCKS 5 - SPRING SEATS
    2 - RETAINERS 6 - CYLINDER HEAD
    3 - VALVE SPRINGS 7 - VALVE - EXHAUST
    4 - VALVE STEM SEALS 8 - VALVE - INTAKE
  2. Remove valve retaining locks. See Fig 2.
  3. Slowly release valve spring compressor. Remove valve spring retainer, valve spring, and valve stem seal.
  4. Before removing valves, remove any burrs from valve stem lock grooves to prevent damage to the valve guides.  Identify valves to insure installation in original location.
