Cylinder Head Cover- Left

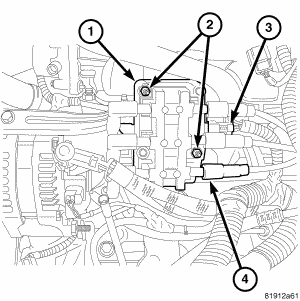

Fig 1: Ignition Coil Pack 3.8L
GC0064340Courtesy of CHRYSLER LLC
  1. Remove the ignition coil pack (1).
  2. Disconnect spark plug wires from spark plugs.
    Fig 2: PCV Valve Location 3.8L
    GC0064341Courtesy of CHRYSLER LLC
  3. Disconnect PCV hose (1) from cylinder head cover.

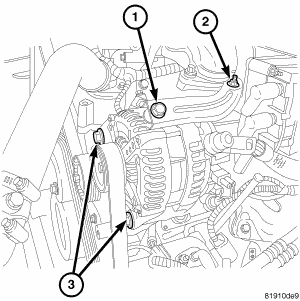

    Fig 3: Generator Mounting 3.8L
    GC0064342Courtesy of CHRYSLER LLC
  4. Remove the generator support bracket (1,2).
  5. Remove cylinder head cover bolts.
  6. Remove cylinder head cover and gasket.
