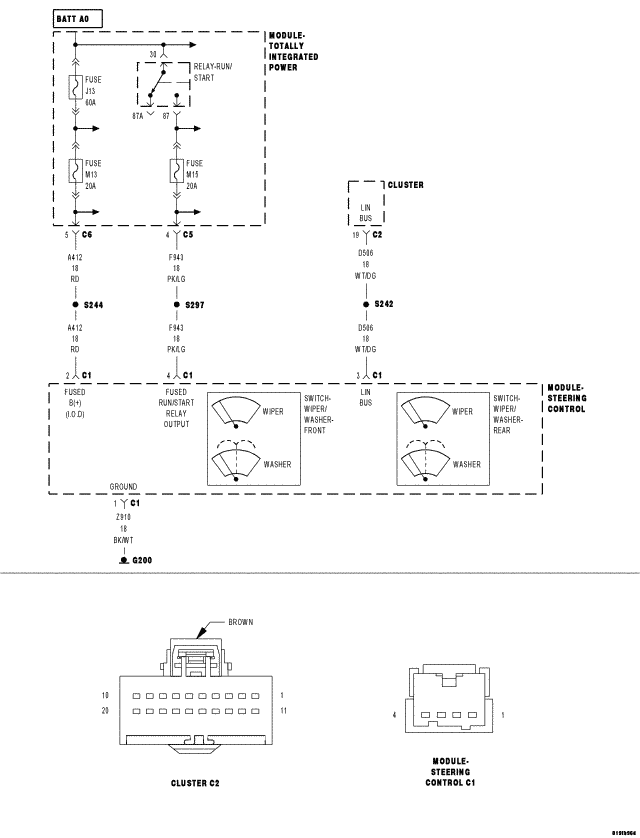

Home >> Jeep >> 2007 >> Wrangler Rubicon, Standard >> Repair and Diagnosis (Single Page) >> Electrical >> Gauges >> Instrument Cluster - Electrical Diagnostics >> Instrument Cluster - Electrical Diagnostics >> DTC Troubleshooting >> U1149-Lost Communication With MULTIFUNCTION Switch >> Circuit Schematic
