Body Decals

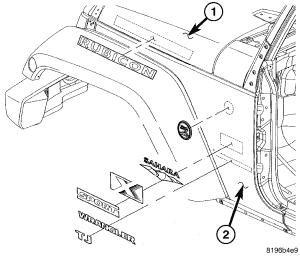

Fig 1: Identifying Body Decals Front

Courtesy of CHRYSLER LLC

Apply a length of masking tape on the body (2) and hood (1), parallel to the top edge of the nameplate to use as a guide, if necessary.

Fig 2: Identifying Body Decals Rear
Courtesy of CHRYSLER LLC
Apply a length of masking tape on the body (1), parallel to the top edge of the nameplate to use as a guide, if necessary.
NOTE: Exterior nameplates are attached to body panels with adhesive tape.
If temperature is below 21°C (70°F) warm emblem with a heat lamp or gun. Do not exceed 52°C (120°F) when heating emblem.
CAUTION: Use care when separating the emblem from the body surface to avoid scratching the paint.
Using a trim stick C-4755 or equivalent, behind the emblem to separate the adhesive backing from the body.
Clean adhesive residue from body with MOPAR® Super Clean solvent or equivalent.
