Carrier Plate

Fig 1: Trim Panel
GC0064685Courtesy of CHRYSLER LLC
  1. Position the glass into the down position.
  2. Remove the door trim panel. See REMOVAL .
    Fig 2: Removing/Installing Glass
    GC0064686Courtesy of CHRYSLER LLC
  3. If equipped, using a punch or similar tool, carefully remove the glass disconnect hole plugs. See DESCRIPTION .
  4. Release the two glass retainer tabs (3) and separate the glass clip (4) from the regulator lift plate and position into the full up position.
  5. Position the glass (1) into the full up position and using tape or equivalent, secure the glass.

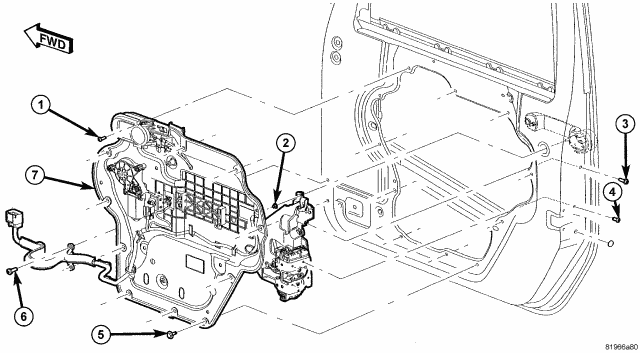

    Fig 3: Identifying Carrier Plate Nuts & Screws
    GC0064681Courtesy of CHRYSLER LLC
  6. Disconnect the door wire harness at the A-pillar and separate the check strap from the hook.
  7. Remove the screws (6) and separate the wire harness push pins from the door structure.
  8. Remove the door handle screw (1).
  9. Remove the latch screws (4).
  10. Remove the rubber hole plug in the door and remove the nut (2).
  11. Remove the upper latch bracket screw (3).
  12. Remove the carrier plate screws (5) and remove the carrier plate assembly (7) from the door.
