Front Axle - 216FBI

Fig 1: Front Reference Mark

Courtesy of CHRYSLER LLC

NOTE: Procedure is the same for a 4x2 tube axle except for propeller shaft and axle vent removal.

With transmission in neutral, position vehicle on hoist.
Position and secure a lift under the axle.
Mark an installation reference line across the front propeller shaft flange (1) and the axle flange (2).

Fig 2: Tru-Lok Harness
Courtesy of CHRYSLER LLC
Disconnect Tru-Lok wiring connectors (1,2) and axle vent hose.

Fig 3: Front Wheel Speed Sensor
Courtesy of CHRYSLER LLC
Remove brake calipers and rotors.
Remove wheel speed sensors (1) from hub bearings.
Remove brake lines and sensor wiring from axle.

Fig 4: Stabilizer Link
Courtesy of CHRYSLER LLC
Remove stabilizer bar links (1) from axle brackets (2).

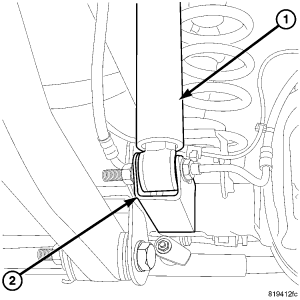

Fig 5: Shock Absorber
Courtesy of CHRYSLER LLC
Remove shock absorbers (1) from axle brackets (2).

Fig 6: Track Bar Axle Side
Courtesy of CHRYSLER LLC
Remove track bar bolt (1) and track bar (2) from axle bracket.

Fig 7: Steering Damper
Courtesy of CHRYSLER LLC
Remove steering damper (1) from axle bracket (2).

Fig 8: Drag Link
Courtesy of CHRYSLER LLC
Remove drag link (1) and tie rod ends (2) from steering knuckles.

Fig 9: Upper Control Arm
Courtesy of CHRYSLER LLC
Remove upper control arms (1) from axle brackets (2).

Fig 10: Lower Control Arm
Courtesy of CHRYSLER LLC
Mark lower control arm cams (1) for installation reference and loosen nuts (2).
Lower axle enough to remove coil springs from axle.
Remove lower control arm bolts remove axle from vehicle.
