Pinion Gear/Ring Gear

Fig 1: Ring Gear

Courtesy of CHRYSLER LLC

NOTE: The ring gear and pinion are serviced as a matched set. Never replace one gear without replacing the other matched gear.

Remove differential assembly from axle housing.
Remove ring gear bolt (1) and ring gear (2) from differential case.

Fig 2: Flange Wrench 6958
Courtesy of CHRYSLER LLC
Hold pinion flange (1) with Spanner Wrench 6958 (2) and remove the pinion nut and washer.

Fig 3: FLANGE PULLER C-452
Courtesy of CHRYSLER LLC
Remove pinion flange (1) with Puller C-452 (2).

Fig 4: Pinion Driver 8976
Courtesy of CHRYSLER LLC
Remove pinion gear (1) from the housing with Driver 8976 (2).

Fig 5: Removing Collapsible Preload Spacer
Courtesy of CHRYSLER LLC
Remove collapsible spacer (1) from pinion (3).

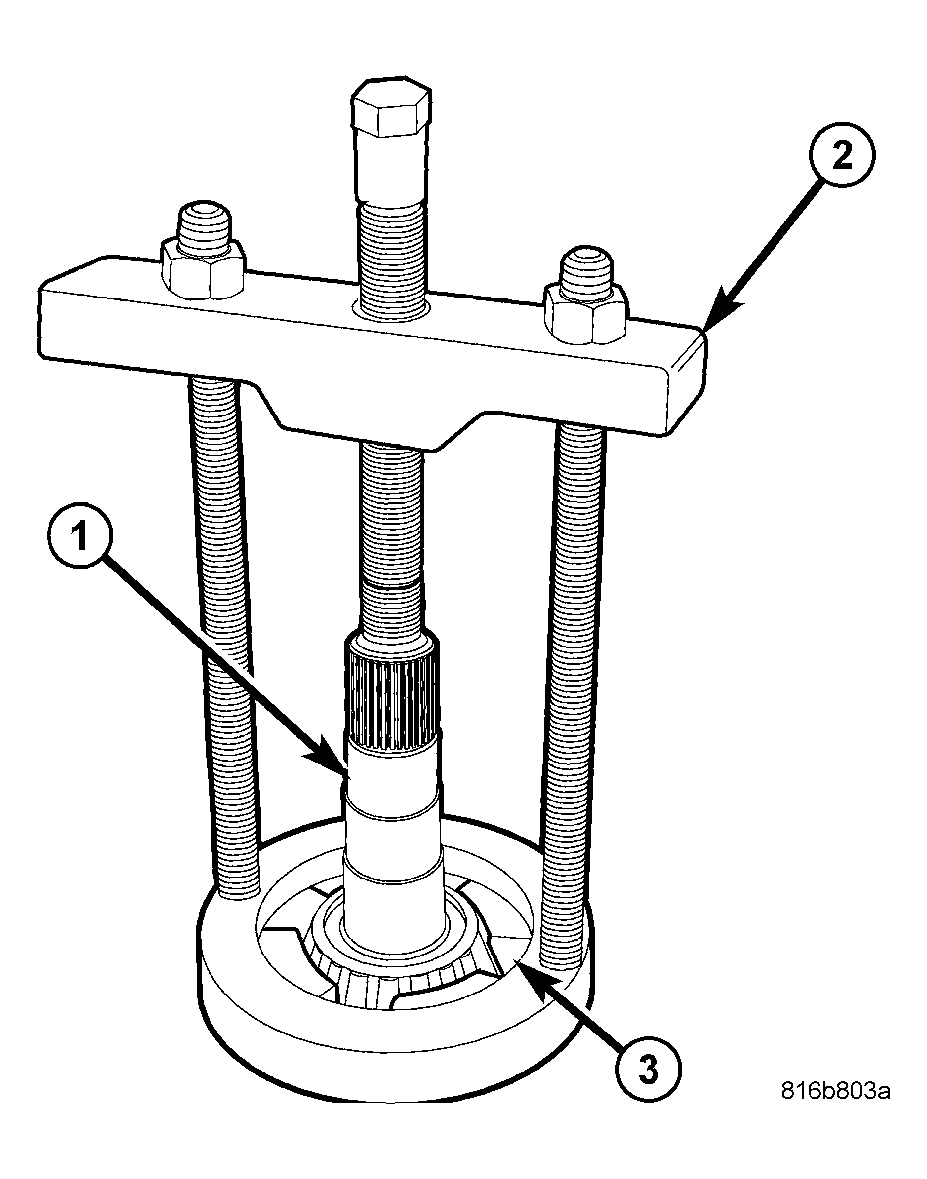

Fig 6: Rear Pinion Bearing
Courtesy of CHRYSLER LLC
Remove rear pinion bearing from pinion shaft (1) with Puller C-293-PA (2) and Adapters C-293-47 (3).

Fig 7: Pinion Depth Shim
Courtesy of CHRYSLER LLC
Remove and record pinion depth shims (1) from the pinion gear shaft (2).

Fig 8: Oil Slinger
Courtesy of CHRYSLER LLC
Remove pinion seal with seal puller and remove oil slinger (1).

Fig 9: Front Pinion Bearing
Courtesy of CHRYSLER LLC
Remove front pinion bearing (1).

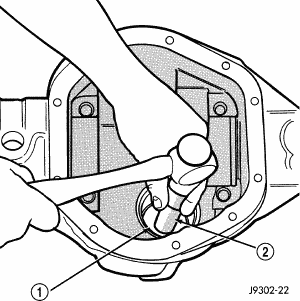

Fig 10: Front Bearing Cup
Courtesy of CHRYSLER LLC
Remove front pinion bearing cup from differential housing with Remover D-103 (1) and Handle C-4171 (2).

Fig 11: Rear Bearing Cup
Courtesy of CHRYSLER LLC
Remove rear pinion bearing cup from differential housing with Remover C-4307 (1) and Handle C-4171 (2).
