Pinion Gear/Ring Gear

Fig 1: Rear Bearing Cup

Courtesy of CHRYSLER LLC

Install rear bearing cup with Installer C-4308 (1) and Handle C-4171 (2).

Fig 2: Front Bearing Cup Installer
Courtesy of CHRYSLER LLC
Install front bearing cup with Installer D-129 (1) and Handle C-4171 (2).

Fig 3: Front Pinion Bearing
Courtesy of CHRYSLER LLC
Install front pinion bearing (1).

Fig 4: Oil Slinger
Courtesy of CHRYSLER LLC
Install front pinion bearing oil slinger (1).

Fig 5: Seal Installer 8681
Courtesy of CHRYSLER LLC
Apply a light coating of gear lubricant on the lip of pinion seal. Install pinion seal with Installer 8681 (1) and Handle C-4171 (2).

Fig 6: Pinion Depth Shim
Courtesy of CHRYSLER LLC
Install pinion depth shims (1) on the pinion shaft (2).

Fig 7: Rear Pinion Bearing
Courtesy of CHRYSLER LLC
Install rear pinion bearing (4) on the pinion gear (3) with Installer C-4040 (2) and a press (1).

Fig 8: Removing Collapsible Preload Spacer
Courtesy of CHRYSLER LLC
Install collapsible spacer (1) on pinion shaft (3).

Fig 9: Flange Installer C-3718
Courtesy of CHRYSLER LLC
Install pinion gear into the housing.
Install pinion flange (1) with Installer C-3718 (2).

Fig 10: Flange Wrench 6958
Courtesy of CHRYSLER LLC
Install pinion washer and a new nut. Hold pinion flange with Spanner Wrench 6958 and tighten pinion nut to 217 N.m (160 ft. lbs.).
Set torque wrench to 271 N.m (200 ft. lbs.) and tighten pinion nut in 6.8 N.m (5 ft. lbs.) increments until Pinion Torque To Rotate specification is achieved.

Fig 11: Torque To Rotate
Courtesy of CHRYSLER LLC
Measure Pinion Torque To Rotate (1) (PTTR) after each 6.8 N.m (5 ft. lbs.) increment with an inch pound torque wrench (2).
Pinion Torque To Rotate is:
1. Original Bearings - 1 to 2 N.m (10 to 20 in. lbs.)
2. New Bearings - 2 to 4.5 N.m (20 to 40 in. lbs.)

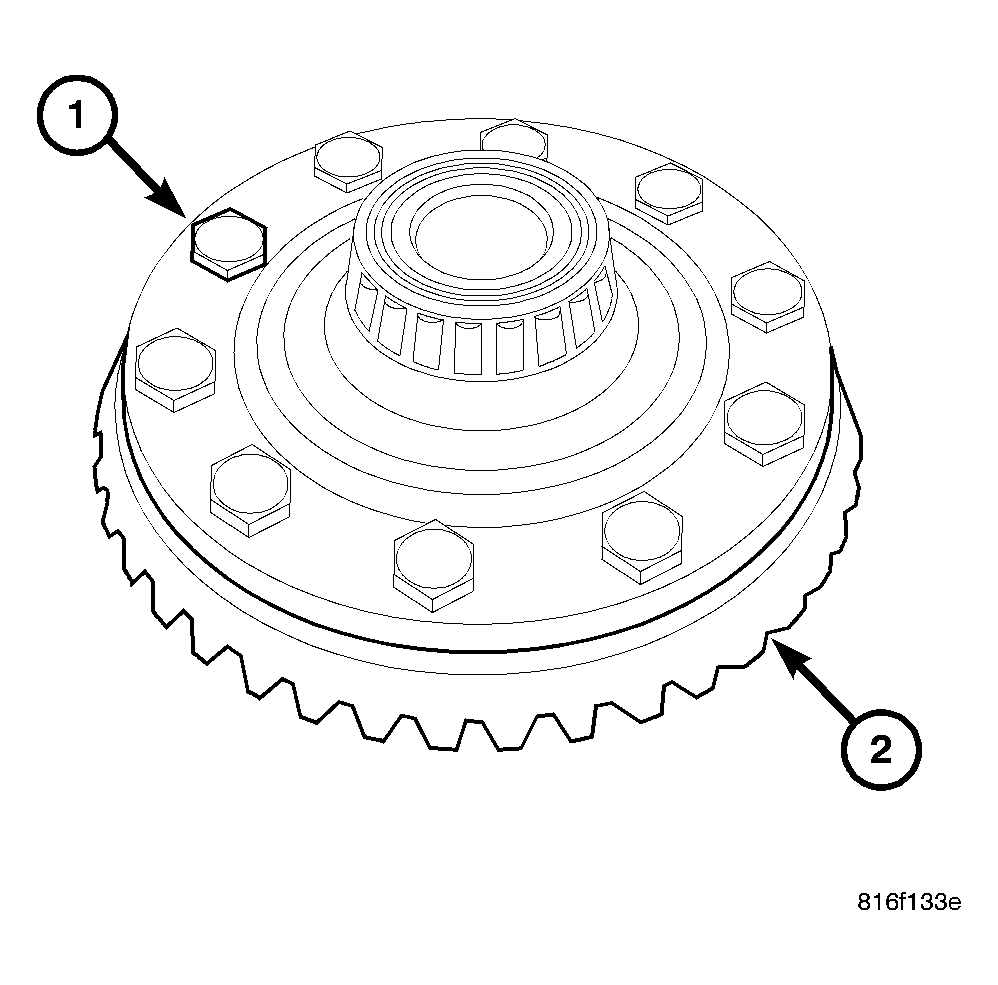

Fig 12: Ring Gear
Courtesy of CHRYSLER LLC
Install new ring gear bolts (1) and alternately tighten to 136 N.m (100 ft. lbs.) for 7/16 inch bolts or 183 N.m (135 ft. lbs.) for 1/2 inch bolts.
CAUTION: Never reuse ring gear bolts, the bolts can fracture causing extensive damage. Failure to these instruction may result in damage.
Install differential in axle housing and verify gear backlash, mesh and contact pattern.

Fig 13: Torque To Rotate
Courtesy of CHRYSLER LLC
Measure Total Torque To Rotate (TTTR) with an inch pound torque wrench (2) before installing the axle shafts.
Total Torque To Rotate is: Pinion Torque To Rotate plus 0.79 - 1.24 N.m (7 - 11 in lbs.).

NOTE: If TTTR is too high, decrease shim thickness equally from both sides of the differential and check TTTR again. If TTTR is too low, increase shim thickness equally to both sides of the differential and check TTTR again.
