Pinion Gear/Ring Gear

Fig 1: Ring Gear

Courtesy of CHRYSLER LLC

NOTE: The ring and pinion gears are serviced in a matched set. Never replace one gear without replacing the other gear.

Remove differential from housing.
Remove ring gear (2) bolts (1) and remove ring gear from differential case.

Fig 2: Flange Wrench 6958
Courtesy of CHRYSLER LLC
Hold pinion flange (1) with Spanner Wrench 6958 (2) and remove pinion nut and washer.

Fig 3: Flange Puller C-452
Courtesy of CHRYSLER LLC
Remove pinion flange (1) with Puller C-452.

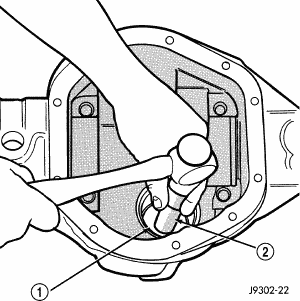

Fig 4: Pinion Driver 8976
Courtesy of CHRYSLER LLC
Remove pinion gear (1) from housing with Driver 8976 (1).

Fig 5: Oil Slinger
Courtesy of CHRYSLER LLC
Remove pinion shaft seal with seal puller.
Remove oil slinger (1).

Fig 6: Front Pinion Bearing
Courtesy of CHRYSLER LLC
Remove front pinion bearing (1).

Fig 7: Front Bearing Cup Removal
Courtesy of CHRYSLER LLC
Remove front pinion bearing cup with Remover D-103 (1) and Handle C-4171 (2).

Fig 8: Rear Bearing Cup Removal
Courtesy of CHRYSLER LLC
Remove rear bearing cup from housing with Remover C4307 (1) and Handle C-4171 (2).

Fig 9: Collapsible Spacer
Courtesy of CHRYSLER LLC
Remove collapsible spacer (1) from pinion gear shaft (2).

Fig 10: Rear Pinion Bearing
Courtesy of CHRYSLER LLC
Remove rear bearing from the pinion shaft (1) with Puller C-293-PA (2) and Adapters C-293-42 (3).

Fig 11: Pinion Depth Shim
Courtesy of CHRYSLER LLC
Remove depth shims (1) from the pinion shaft (2) and record the shims thickness.
