Differential Case Bearings

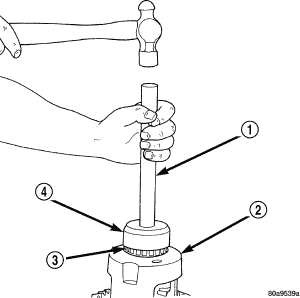

Fig 1: Removing/Installing Differential Case Bearings Using Special Tools
GC0063712Courtesy of CHRYSLER LLC
  1. Install differential (2) side bearings (3) with Installer C-3716-A (4) with Handle C-4171 (1).
  2. Install differential in the housing.
