Axle Shaft Seal

Fig 1: Axle Seal Installer
GC0030084Courtesy of CHRYSLER LLC
  1. Remove any sealer remaining from original seals.
  2. Install oil seals with Discs 8110 (2) and Turnbuckle 6797 (1). Tighten tool until disc bottoms in housing.

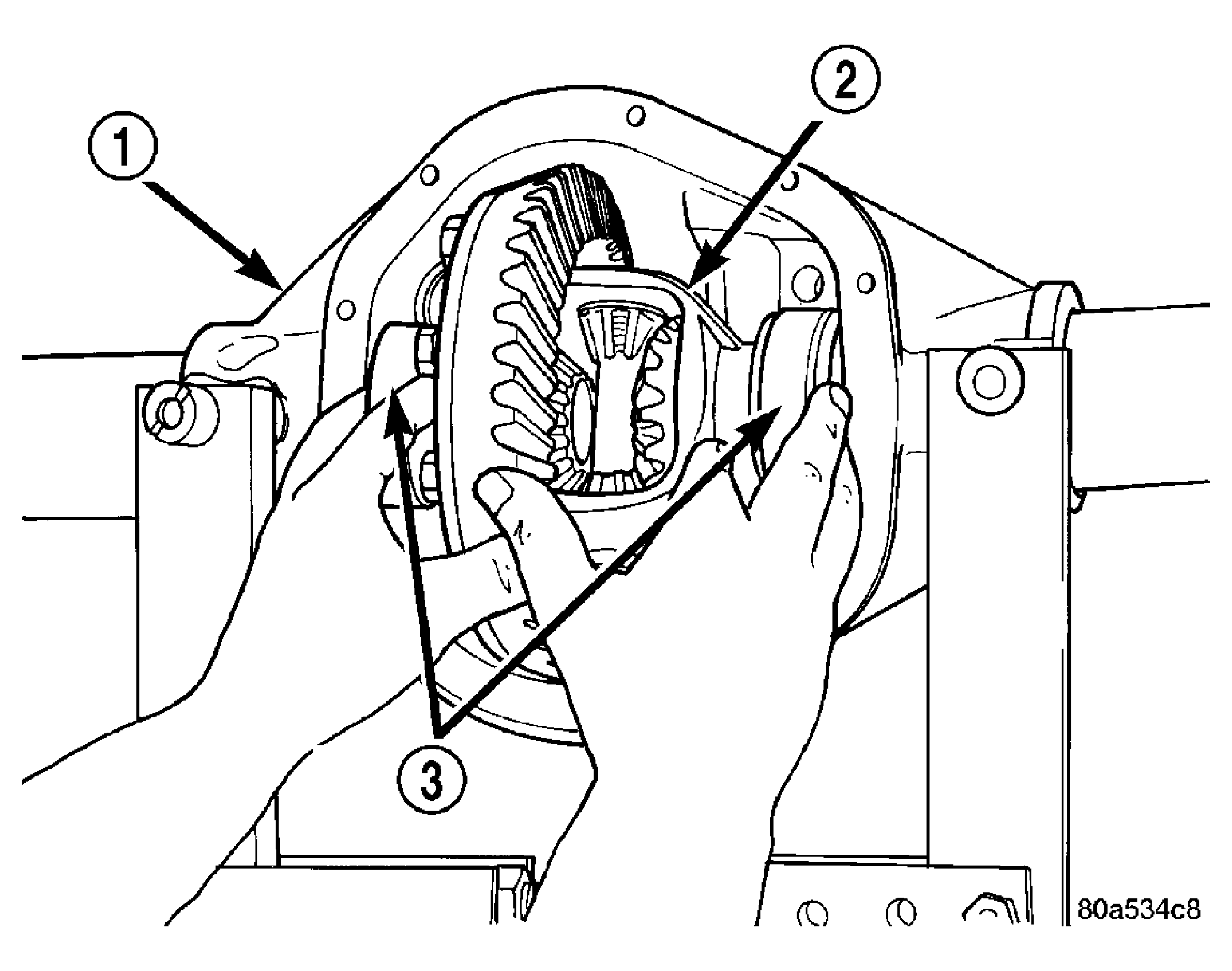

    Fig 2: Differential Case
    GC0008217Courtesy of CHRYSLER LLC
  3. Install differential (2) into housing (1).
    Fig 3: Axle Shaft
    GC0063541Courtesy of CHRYSLER LLC
  4. Install hub bearings (1) and axles (2).
    Fig 4: Hub Bearing Bolts
    GC0063540Courtesy of CHRYSLER LLC
  5. Install hub bearing bolts (1) through steering knuckle (2) and tighten to 102 N.m (75 ft. lbs.).
  6. Install wheel speed sensor.
  7. Install brake components.
