Pinion Gear/Ring Gear

Fig 1: Ring Gear

Courtesy of CHRYSLER LLC

NOTE: The ring and pinion gears are serviced as a matched set. Never replace one gear without replacing the other matched gear.

Remove differential from axle housing.
Remove ring gear bolts (1) and remove ring gear (2) from differential case.

Fig 2: Flange Holder
Courtesy of CHRYSLER LLC
Hold pinion flange (1) with Flange Wrench C-3281 (2) and remove the pinion nut.

Fig 3: Flange Puller
Courtesy of CHRYSLER LLC
Remove pinion flange (1) with Puller C-452 (2).

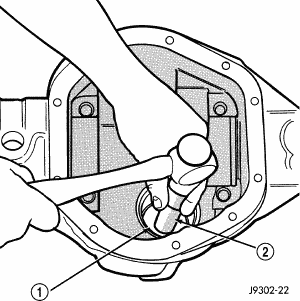

Fig 4: Pinion Gear
Courtesy of CHRYSLER LLC
Drive pinion out of the housing with a dead blow hammer (1).

Fig 5: Oil Slinger
Courtesy of CHRYSLER LLC
Remove pinion seal with seal puller.
Remove oil slinger (1).

Fig 6: Front Pinion Bearing
Courtesy of CHRYSLER LLC
Remove front bearing (1).

Fig 7: Front Bearing Cup
Courtesy of CHRYSLER LLC
Remove front pinion bearing cup with Remover D-149 (1) and Handle C-4171 (2).
Remove rear pinion bearing cup and oil baffle with a hammer and brass drift.

Fig 8: Collapsible Spacer
Courtesy of CHRYSLER LLC
Remove collapsible spacer (1) from pinion shaft (2).

Fig 9: Rear Pinion Bearing
Courtesy of CHRYSLER LLC
Remove rear pinion bearing from pinion shaft (1) with Puller C-293-PA (2) and Adapters C-293-48 (3).

Fig 10: Pinion Depth Shim
Courtesy of CHRYSLER LLC
Remove pinion depth shim (1) from the pinion shaft (2) and record thickness.
