Home >> Jeep >> 2007 >> Wrangler Rubicon, Standard >> Repair and Diagnosis (Single Page) >> Drivelines & Axles >> Differentials & Drive Axles >> Differential & Driveline (Service Information) >> Front Axle - 186FBI >> Bearings-Differential Case >> Removal >> Differential Case Bearings

Differential Case Bearings

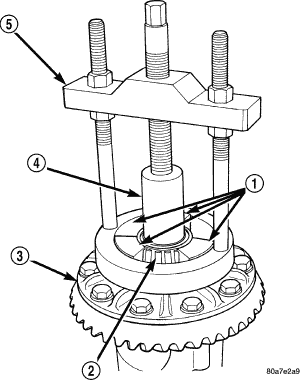

Fig 1: Removing/Installing Differential Case Bearings
GC0063589Courtesy of CHRYSLER LLC
  1. Remove bearings (2) from the differential case (3) with Puller C-293-PA (5) Adapter C-293-39 (1) and Plug SP-3289 (4).
