Differential Case Bearings

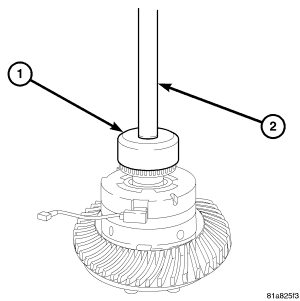

Fig 1: Bearing Installer C-4213
GC0063643Courtesy of CHRYSLER LLC
  1. Install differential side bearings on Tru-Lok differentials with Installer C-4213 (1) and Handle C-4171 (2).

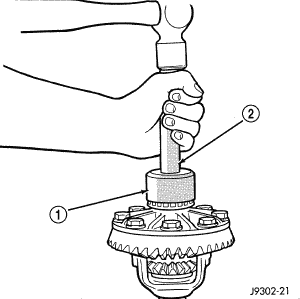

    Fig 2: Differential Side Bearing Installation
    GC0063809Courtesy of CHRYSLER LLC
  2. Install differential side bearings on open or Trac-Lok® differentials with Installer D-156 (1) and Handle C-4171 (2).
  3. Install differential into the housing.
