Pinion/Ring Gear

Fig 1: Ring Gear

Courtesy of CHRYSLER LLC

NOTE: The ring and pinion gears are serviced as a matched set. Never replace one gear without replacing the other gear.

Remove differential assembly from axle housing.
Remove ring gear bolts (1) and remove ring gear (2) from differential case.

Fig 2: Indicator Switch
Courtesy of CHRYSLER LLC
Remove Tru-Lok indicator switch (1) from differential housing (2).

Fig 3: Flange Holder
Courtesy of CHRYSLER LLC
Hold pinion flange (1) with Flange Wrench C-3281 (2) and remove pinion nut.

Fig 4: Flange Puller
Courtesy of CHRYSLER LLC
Remove pinion flange (1) with Puller C-452 (2).

Fig 5: Removing Pinion Gear
Courtesy of CHRYSLER LLC
Remove pinion gear from housing with dead blow hammer (1).

Fig 6: Removing Collapsible Preload Spacer
Courtesy of CHRYSLER LLC
Remove collapsible spacer (1) from pinion gear (3).

Fig 7: Rear Pinion Bearing
Courtesy of CHRYSLER LLC
Remove rear pinion bearing from pinion shaft (1) with Puller C-293-PA (2) and Adapters C-293-47 (3).

Fig 8: Pinion Depth Shim
Courtesy of CHRYSLER LLC
Remove pinion depth shim (1) from pinion shaft (2) and record thickness.

Fig 9: Oil Slinger
Courtesy of CHRYSLER LLC
Remove pinion seal with seal puller.
Remove front bearing oil slinger (1).

Fig 10: Front Pinion Bearing
Courtesy of CHRYSLER LLC
Remove front pinion bearing (1).

Fig 11: Removing Front Bearing Cup
Courtesy of CHRYSLER LLC
Remove front pinion bearing cup with Remover D-158 (1) and Handle C-4171 (2).

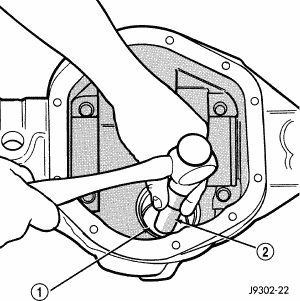

Fig 12: Removing Rear Bearing Cup
Courtesy of CHRYSLER LLC
Remove rear bearing cup (1) and oil baffle with a hammer and punch (2).
