Park Brake Shoes - Drum In Hat

  1. Raise and support the vehicle.
  2. Remove the tire and wheel assembly.
  3. Remove the disc brake caliper adapter. See REMOVAL .
  4. Remove the disc brake rotor. See REMOVAL .
    Fig 1: Rear Wheel Speed Sensor
    GC0063649Courtesy of CHRYSLER LLC
  5. Remove the wheel speed sensor (3). Refer to REMOVAL .
    Fig 2: Park Lever Lock Out
    GC0063827Courtesy of CHRYSLER LLC
  6. Remove the center floor console. Refer to REMOVAL .
  7. Lock out the park brake system at the lever using a suitable tool (1) and pulling upward on the brake cable (3). See STANDARD PROCEDURE .
    Fig 3: Cable Front Mount
    GC0025510Courtesy of CHRYSLER LLC
  8. Remove the rear parking brake cables (2) from the equalizer.
    Fig 4: Cable At Support Plate
    GC0063647Courtesy of CHRYSLER LLC
  9. Remove the parking brake cable (1) from the brake shoe lever (2) at the axle.

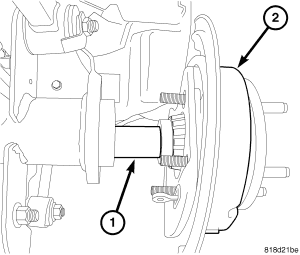

    Fig 5: Identifying Axle
    GC0063829Courtesy of CHRYSLER LLC
  10. Remove the axle shaft (1). Refer to REMOVAL .

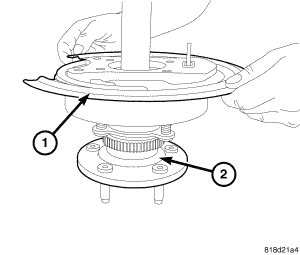

    Fig 6: Support Plate Assembly To Axle
    GC0063830Courtesy of CHRYSLER LLC
  11. Tap the seal plate from the brake support (1) on the axle shaft (2).
  12. Remove the support plate with the brake shoes (1) from the axle shaft (1).
    Fig 7: Identifying Brake Shoes
    GC0063828Courtesy of CHRYSLER LLC
  13. Disassemble the rear park brake shoes.
