Fluid Reservoir: Removal: Reservoir

Fig 1: Master Cylinder

Courtesy of CHRYSLER LLC

Install prop rod on brake pedal to keep pressure on the brake system.
Remove reservoir cap and siphon fluid into drain container.
Remove the electrical connector (3) from the fluid level switch in the reservoir (2).

Fig 2: Reservoir Tabs
Courtesy of CHRYSLER LLC
Remove the reservoir (1) from the master cylinder by pulling the four tabs (3) outward to release.

Fig 3: Reservoir
Courtesy of CHRYSLER LLC
Remove the reservoir (1) from the master cylinder by pulling upwards.
If replacing the reservoir (1) remove the fluid level sensor (2) by squeezing the tabs together while pulling on the sensor (2).

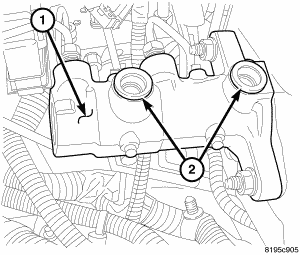

Fig 4: Master W/O Reservoir
Courtesy of CHRYSLER LLC
Remove old grommets (2) from cylinder body (1).
