Front Brake Hose

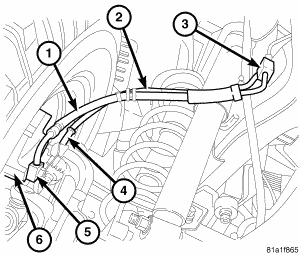

Fig 1: Front Brake Hose
GC0063816Courtesy of CHRYSLER LLC
  1. Install prop rod on the brake pedal to keep pressure on the brake system, Holding pedal in this position will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of brake fluid reservoir while brake lines are open. This will allow you to bleed out the area of repair instead of the entire system.
  2. Raise and support vehicle.
  3. Remove the tire and wheel assembly.
  4. Remove the wheel speed sensor wire (2) from the brake hose (1).
  5. Remove the brake hose banjo bolt (5) at the caliper (6).
    Fig 2: Mounting Bolt
    GC0063817Courtesy of CHRYSLER LLC

    Remove the brake line (1) at the frame.

  6. Remove the brake hose mounting bolt (2) at the frame.
  7. Remove the hose (3).
