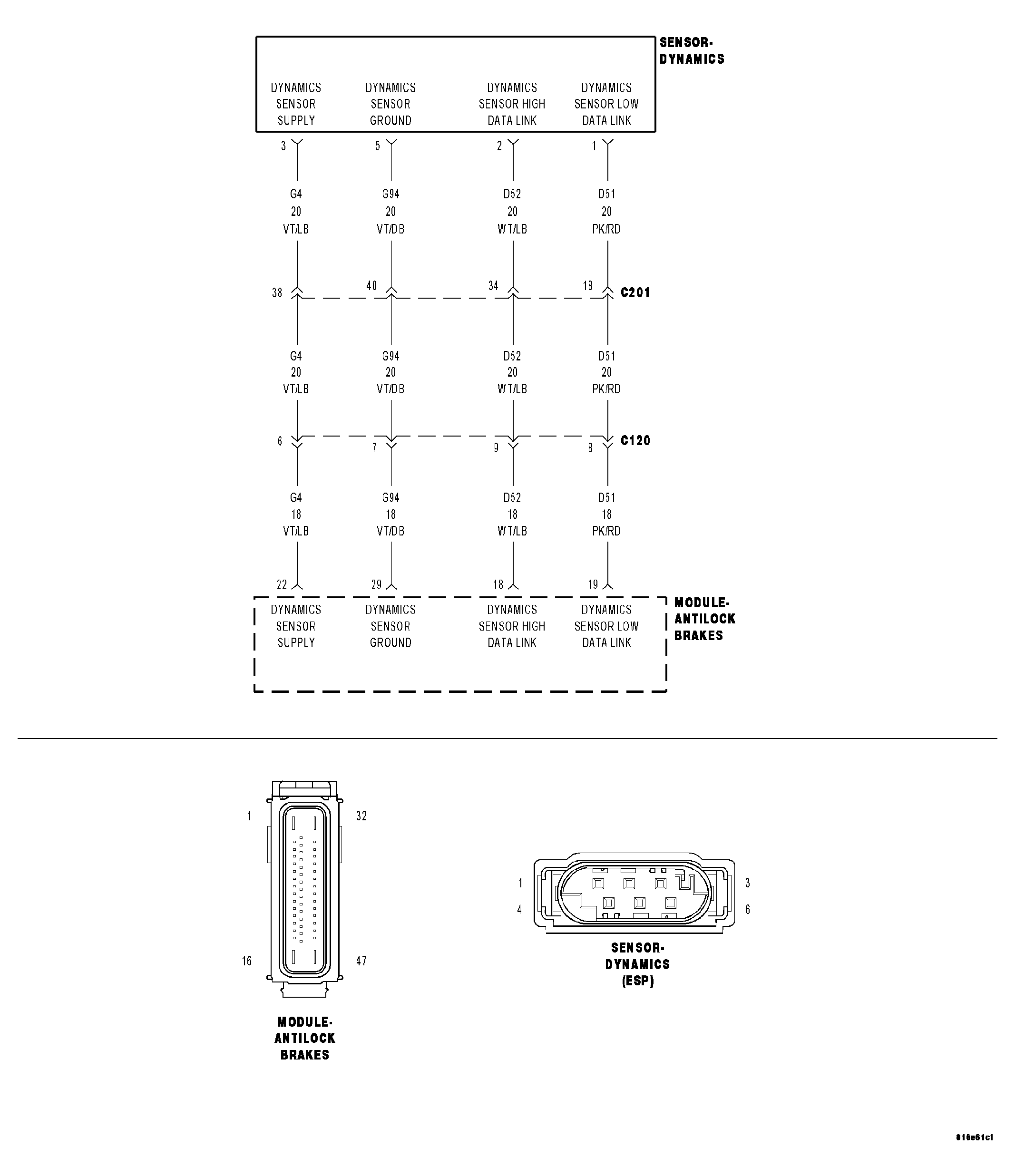

Home >> Jeep >> 2007 >> Wrangler Rubicon, Standard >> Repair and Diagnosis (Single Page) >> Brakes >> Anti-Lock Brakes >> Anti-Lock Brake System - Electrical Diagnostics >> Brakes - Abs Electrical Diagnostics >> DTC Troubleshooting >> U1003-Esp Can C Bus Performance >> Circuit Schematic
