Handle - Inside Release

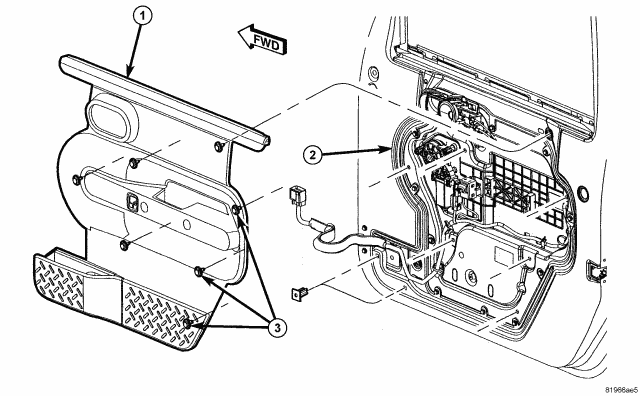

Fig 1: Trim Panel

Courtesy of CHRYSLER LLC

NOTE: Front door shown, rear door similar.

Remove the door trim panel (1). See REMOVAL .

Fig 2: Identifying Carrier Plate
Courtesy of CHRYSLER LLC
Remove the screw (2) securing the handle (1) to the carrier plate.

Fig 3: Removing/Installing Handle
Courtesy of CHRYSLER LLC
Disconnect the clips (4) and disconnect the cables (1).
Slide the handle (3) off of the retaining tabs (2) and remove.
