Console - Center

Fig 1: Removing/Installing T-Case Shifter Knob

Courtesy of CHRYSLER LLC

On 4x4 vehicles grasp the transfer case shifter knob and pull straight up and remove the knob.

Fig 2: Identifying Manual Shift Shaft & Shifter Boot
Courtesy of CHRYSLER LLC
On manual transmission vehicles, using a trim stick C-4755 or equivalent, separate the shifter boot (2) from the console bezel (1).

Fig 3: Removing/Installing Manual Shift Shaft
Courtesy of CHRYSLER LLC
Remove the bolt (3) and remove the manual transmission shifter (2) from the shifter shaft (1).

Fig 4: Removing/Installing Cup Holder Or Ash Receiver & Console Bezel
Courtesy of CHRYSLER LLC
Remove the cup holder or ash receiver (1), if equipped.
Using a trim stick C-4755 or equivalent, remove the console bezel (2).

Fig 5: Removing/Installing Electrical Connector
Courtesy of CHRYSLER LLC
Disconnect the electrical connector (1).

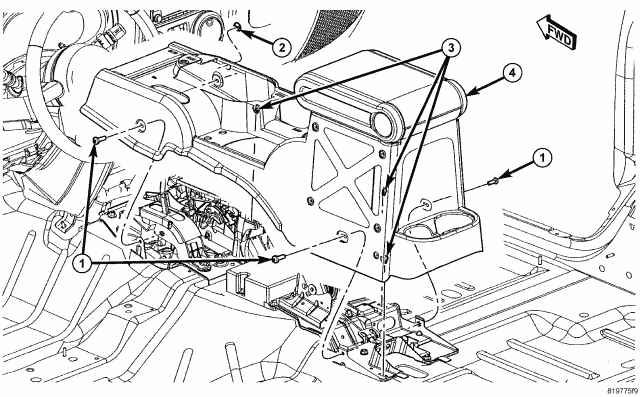

Fig 6: Removing/Installing Floor Console
Courtesy of CHRYSLER LLC
Remove the four console screws (1).
Lift the console (4) up off the clip retainers (3) and remove.
