Cushion/Cover-Seat Back - Front

Before proceeding with the following repair procedure, review all warnings and cautions. See WARNING .
For appropriate seat configuration illustrations. See DESCRIPTION .
Remove the front seat. See REMOVAL .
Remove the seat recliner easy entry levers, if equipped.
Position aside the seat back cover and remove the seat back assembly bolts.
If equipped, disconnect the electrical connectors and remove the seat back.

Fig 1: Removing/Installing Head Rest
Courtesy of CHRYSLER LLC
Push in the buttons on both headrest sleeves, pull the headrest up and remove.

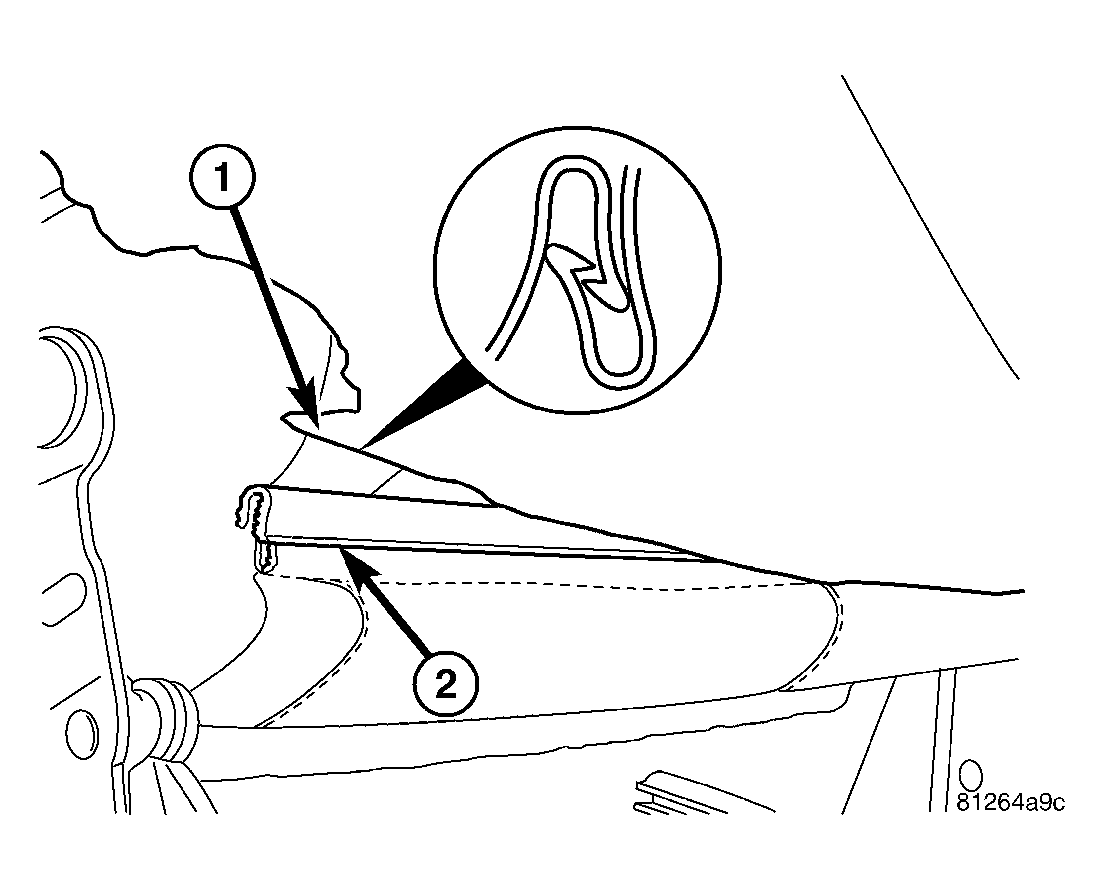

Fig 2: View Of J-Straps
Courtesy of CHRYSLER LLC
Separate the J-straps (1 & 2) and pull cover up over frame.
Unzip the cover zippers.
On vehicles equipped with seat air bags, remove the air bag. Refer to REMOVAL .

Fig 3: Identifying Cushion, Cover & Hog Rings
Courtesy of CHRYSLER LLC
Cut off the hog rings (2) attaching the cover (3) to the cushion (1).

Fig 4: Removing/Installing Headrest Sleeves & Cover
Courtesy of CHRYSLER LLC
Squeeze the locking tab (3) and remove the headrest sleeves (1) and remove the cover.
