Catch - Hood

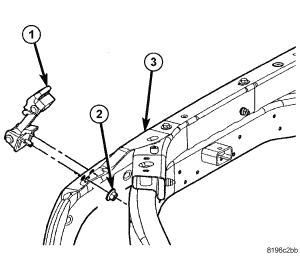

Fig 1: Removing/Installing Hood Catch
GC0064732Courtesy of CHRYSLER LLC
  1. Open the hood.
  2. Remove the nuts (2) and remove the hood catch (1).

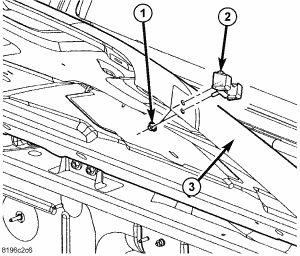

    Fig 2: Removing/Installing Hood Catch Bracket
    GC0064733Courtesy of CHRYSLER LLC
  3. Remove the nuts (1) and remove the catch bracket (2).
